Ecobatt Accessories
For more information
1.

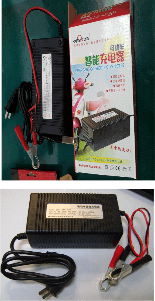

This three-stage charger is a smart charger, with switching power integration technology that can automatically track the battery changes in situation, in a timely manner at constant current, constant voltage, such as intelligent mode buck trickle charge, automatically stop when fully charge.
2.
With the short circuit protection function, when there is a short circuit, the charger will automatically protected.
3.
With charging speed, not losing water, not over charge and so on.
4.
Electric car battery charger.
Dimension: 150 x 85 x 55mm
Input Voltage: AC220V - 240V
Output Voltage: 12V
Rated Frequency: 47-63HZ
Charger Current: 15A
Charger Mode: 4 Steps
Output Voltage: 12V
Rated Frequency: 47-63HZ
Charger Current: 15A
Charger Mode: 4 Steps
Used for: Battery, Solar Panel, Electric Car, Car Battery

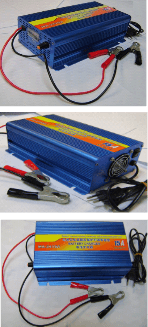

1.
High performance and good stableness.
2.
Suitable for inverter battery for charging
3.
Direct Cigarette lighter connection.
4.
Smart and easy to carry.
5.
Universal socket, suitable for all kinds of plugs.

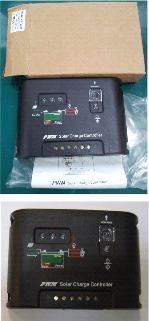

Dimension: 225 x 145 x 80mm
Rate charge current: 20A
Rate discharge current: 20A
System Voltage: 12V/24V Auto
Max solar panel voltage: 41V
Over load protection: <130% (maintain for 60s)
< 160% (maintain for 5s)
over-load (immediately shut down)
Self-consume: <6mA
Charge circuit voltage drop: 0.2V
Discharge circuit voltage drop: <0.1V
Equalize charging voltage: 14.8V
Bulk charging voltage: 14.5V
Acceptance voltage (PWM): 14.2V
Float charging voltage: 13.8V
Charge return voltage: 13.2V
Discharge stop voltage: 11.2V
Discharge return voltage: 12.6V
Temperature compensation: N/S
Operating temperature: -20C ~ +65C
Dimension: 140 x 90 x 28mm
Rate discharge current: 20A
System Voltage: 12V/24V Auto
Max solar panel voltage: 41V
Over load protection: <130% (maintain for 60s)
< 160% (maintain for 5s)
over-load (immediately shut down)
Self-consume: <6mA
Charge circuit voltage drop: 0.2V
Discharge circuit voltage drop: <0.1V
Equalize charging voltage: 14.8V
Bulk charging voltage: 14.5V
Acceptance voltage (PWM): 14.2V
Float charging voltage: 13.8V
Charge return voltage: 13.2V
Discharge stop voltage: 11.2V
Discharge return voltage: 12.6V
Temperature compensation: N/S
Operating temperature: -20C ~ +65C
Dimension: 140 x 90 x 28mm
Input Voltage: 12V
Output Voltage: 220V
Rated Power: 600W
Peak Power: 1200W
Efficiency: >90%
Charge Current: 10 A
Protection: Overload protection, Input over-voltage protection, Input Low-voltage protection, over-temperature.
Used for: Daylight lamp / Lamp bulb, Electric fan, Induction cooker, television, car, solar energy, Computer, Digital product.
Dimension: 205 x 120 x 60mm
Output Voltage: 220V
Rated Power: 600W
Peak Power: 1200W
Efficiency: >90%
Charge Current: 10 A
Protection: Overload protection, Input over-voltage protection, Input Low-voltage protection, over-temperature.
Used for: Daylight lamp / Lamp bulb, Electric fan, Induction cooker, television, car, solar energy, Computer, Digital product.
Dimension: 205 x 120 x 60mm

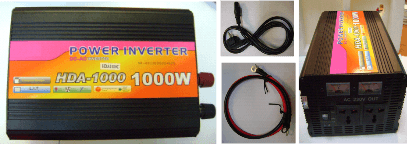

Input Voltage: 12V
Output Voltage: 220V ~240V
Rated Power: 1000W
Peak Power: 2000W
Efficiency: >90%
Charge Current: 20 A ( with charge and UPS function)
Protection: Overload protection, Input over-voltage protection, Input Low-voltage protection, over-temperature.
Used for: Daylight lamp / Lamp bulb, Electric fan, Induction cooker, television, car, solar energy, Computer, Digital product.
Dimension: 265 x 175 x 125mm
Output Voltage: 220V ~240V
Rated Power: 1000W
Peak Power: 2000W
Efficiency: >90%
Charge Current: 20 A ( with charge and UPS function)
Protection: Overload protection, Input over-voltage protection, Input Low-voltage protection, over-temperature.
Used for: Daylight lamp / Lamp bulb, Electric fan, Induction cooker, television, car, solar energy, Computer, Digital product.
Dimension: 265 x 175 x 125mm

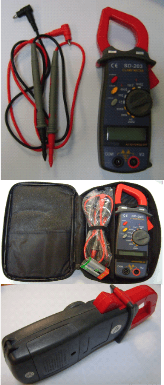

This series of digital Multi meter using LSI and unique features conversion circuit, so that the whole complete AC and DC voltage, current, resistance, capacitance, temperature and continuity measurement, and its novel structure, easy to operate, easy to carry, is a superior electrical digital Multi meter.
This meter is one of a series handheld professional measuring instrument capable of performing functions.
This meter is one of a series handheld professional measuring instrument capable of performing functions.
1.
AC current measurement
2.
DC and AC voltage measurement
3.
Resistance measurement
Some models of this series also provide function:
1.
Diode test
Dimension: 31.5 x 91 x 189mm
